Technical Specifications



Specified to meet, or exceed the requirements of:

  • BS 5776:1996 - 'Specification for powered stairlifts'

  • CE Mark - Stairlift meets the requirements of the applicable local & state code(s).

  • UL compliant (Underwriters Laboratory Inc) for mechanical and electrical hazards.

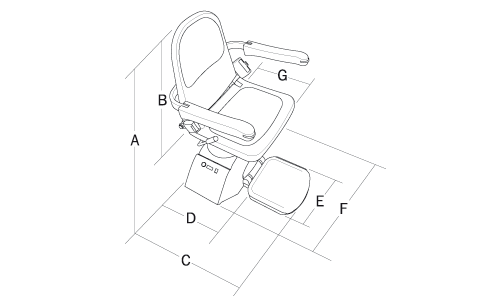

Dimensions:

A - Overall height (from floor)      40"

B - Height of seat                          19.5"

C - Overall depth                            23"

D - Overall depth (when folded)   13"

E - Width of footrest                      12"

F - Overall width                            22"

G - Depth of seat                            16"






Specifications:

  • Motor Power 0.25 kW

  • Motor Output Speed 22 rpm

  • Method of drive rack & pinion

  • Motor Output Torque108 Nm

  • Power Supply 24 v DC (battery)

  • Maximum Capacity 300 lbs*  (350 lbs available)

  • Track extruded aluminum

  • Mains Supply 110v, 50Hz charger






Acorn/Brooks in keeping with its policy of continual development,
reserves the right to change specification without notice.

All measurements are approximate.


* Standard stairlift UL listed to 300lbs, Outdoor lift specified as 295lbs, Heavy Duty 350lbs.
